Jarcrac
Multi

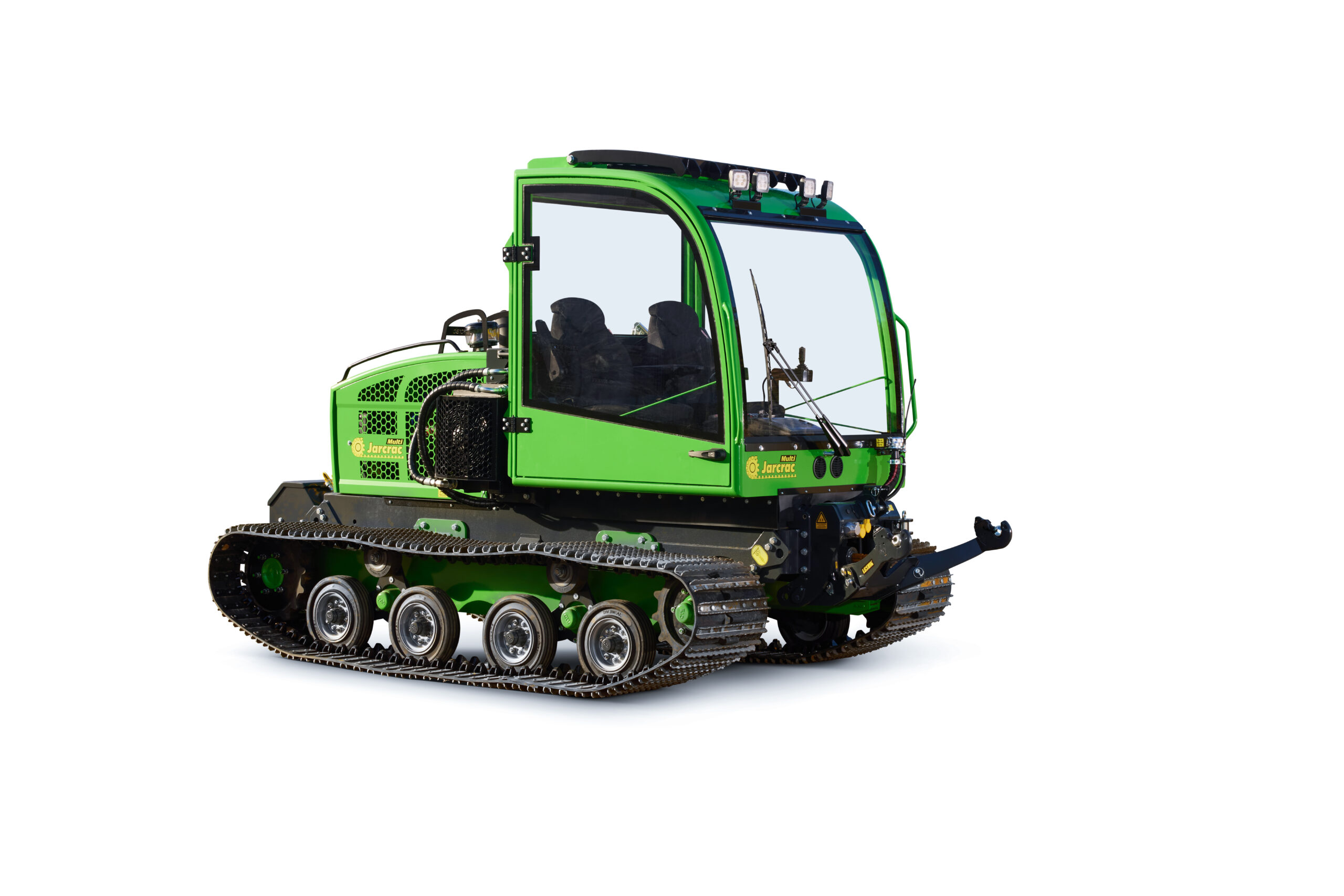

The Jarcrac Multi is a 2-tracked work machine suitable for a wide range of applications. The Jarcrac Multi is ideal for difficult terrain such as swamps, deep snow, and ditched areas. Thanks to the long tracks and the swinging bogies inside them, working is smooth even in the most diffi-cult conditions.
Dimensions and weight
| Length | 310 cm |
| Width | 205 cm |
| Height | 265 cm |
| Ground clearance | 47 cm |
| Weight | appx. 2500 kg |
Chassis and bogies
| Bogie system | Swinging bogies inside tracks (2 pcs / side) |
| Track width | 55 cm |
| Track structure | Rubber/textile -mixture, steel shoes |
| Track wheels | Full rubber track wheels |
| 2 sprocket wheels per track | |
| 4 track wheels per track | |
| Steering | By alternating track spinning speeds |
Cabin
| Features | ROPS & FOPS-certified |
| Cabin supported with 4 rubber cushions | |
| Heat and sound insulation | |
| Cabin is tippable, used with a manual hand pump | |
| Cooling and heating | Heater and cold air blower |
| Seats | 2 seats side-by-side |
| Windows | Margard safety glass |
| Work lights | 4 x LED in front and 4 x LED in back |
| Window wiper | Window wiper for front window |
| Other | Radio |
Electric system
| Voltage | 12 V |
| Alternator | 120 A |
| Battery | 95 Ah |
| Steering of machine | Drive and steering via separate joystick |
Engine
| Engine | Perkins 2,2 l turbocharged industrial engine |
| Power | 55 kW & 270 Nm |
| RPM adjustment | Via a potentiometer |
| Engine control screen | Kyllä |
| Fuel tank | 70 l |
Transmission and hydraulics
| Drive speed (2 speed ranges) | 0-5 km/h and 0-10 km/h |
| Drive pumps | 2 x Bondioli&Pavesi |
| Drive motors | 2 x Poclain |
| Brakes | hydraulic closed-circuit functions as a driving brake, every drive motor also has a safety/parking brake |
| Hydraulic oil cooler | electric |
Accessories
-
Hydraulic takeoffs
Hydraulic takeoffs
Hydrauliset ulosotot eteen ja/tai taakse. Hydraulic takeoffs to front and/or back.
-
Front blade
Front blade
200 cm wide. Four functions: up/down, left/right.
-
Tow hitch to front or back
Tow hitch to front or back
For towing a trailer.
-
Leveling drag
Leveling drag
200 cm wide, 4 graining blades, leveling sheet’s height adjustment, one or two track setters.
-
3-way hitch
3-way hitch
CAT 2 three-way hitch with a damper.
-
LS work pump
LS work pump
LS work pump for utilizing accessories.
-
Hydraulic power Takeoff PTO
Hydraulic power Takeoff PTO
To power accessories.
-
Cargo-bed behind the cabin
Cargo-bed behind the cabin
For transporting equipment.
-
Bio-hydraulic oil
Bio-hydraulic oil
Bio option for hydraulic oil.
-
Diesel refill pump
Diesel refill pump
Easier refueling of machine with a pump.
-
Engine and cabin preheater
Engine and cabin preheater
With weekly clock and adjustable profiles.
-
Smart phone control for preheater
Smart phone control for preheater
Available in select countries.
-
Hydraulic oil heater
Hydraulic oil heater
Available with engine and cabin pre heater.
-
Automatic fire suppression system
Automatic fire suppression system
-
Camera towards the engine bonnet
Camera towards the engine bonnet
With heating, night vision, and a 7″ screen.
-
Electric winch
Electric winch
With protective box.
-
Hydraulic winch
Hydraulic winch
With protective box.
Features
The equipment options of the Jarcrac Multi are very versatile. It can be equipped with, for exam-ple, a power take-off, a load space and a three-point linkage, which enables almost all devices that utilize a category 2 three-point linkage.
If desired, the Jarcrac Multi can also be equipped with a forest trailer and a crane, so that it can be used as a forwarder. The load capacity of the forest trailer is 4000 kg, and the crane is Palms 5.40 with a reach of 5.4 m.
This type of a machine has received very positive feedback from electricity, travel, and mining companies. Uses have included providing sleigh rides for tourists, snow grooming, making ski trails, and transporting equipment in challenging terrain.
Ask for more information
Interested? Get in touch with us and we’ll be happy to tell you more.
Harvester head options
Harvester heads compatible with this product.
Log Max 2000T
Felling diameter 410 mm and delimbing diameter 320 mm. The harvester head is equipped with the Log Mate 510 measuring device.
KESLA 16RH
Felling diameter 450 mm and delimbing diameter 330 mm. Available measuring devices: KESLA proLOG or Technion xLogger with a Tablet PC.
Keto-Forst Xtreme V2
Maximum felling diameter 400 mm and delimbing diameter 250 mm. Available measuring devices: Technion iLogger or xLogger with a Tablet PC.
